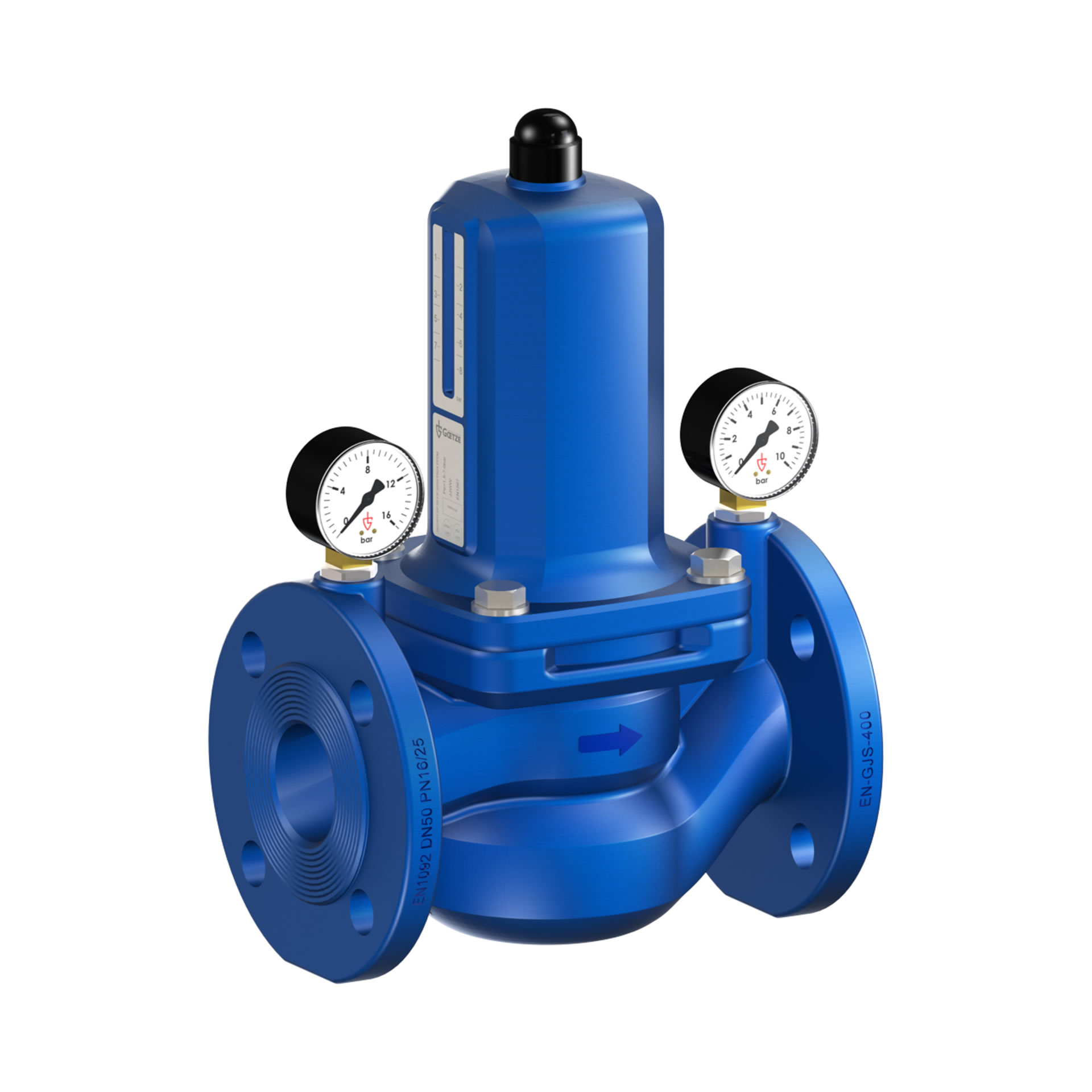

Série 382 - Redukční ventil

Parameters

Catalog number Série 382
Producer Goetze KG Armaturen
Temperature: +5°C .. +65°C
Tlak na vstupu: max. 25 bar
Tlak na výstupu: 0, 5 - 12 bar
Material: Carbon steel
Connection: Flanges
DN: 50, 65
PN: 16, 25
Medium: liquids (neutral)

Description

Protection of supply networks, water supply systems in apartment buildings, commercial and industrial buildings or machines against excessive supply pressure. Use of pressure reducers when a constant supply pressure is required in the system.

Protection of supply networks, water supply systems in apartment buildings, commercial and industrial buildings or machines against excessive supply pressure. Use of pressure reducers when a constant supply pressure is required in the system.

  • Protection against excess pressure
  • Increasing comfort and reducing water consumption


  • Drinking water supply systems
  • Service water supply in industrial and building services engineering Machines / systems with
  • connection to the drinking water network

Upstream pressure balanced diaphragm pressure reducer, constant downstream pressure even with highly fluctuating upstream pressures
First-class flow performance and pressure control
High-quality, vortex-sintered polyamide coating provides excellent, long-lasting corrosion protection and cavitation resistance

Adjustment dial for setting without operating pressure; bonnet can be positionable Valve insert as cartridge for easy and quick maintenance
incl. flange gaskets made of EPDM with steel core (3mm) according to EN1514 (Approvals: Elastomer Guideline (W270, WRAS, ACS and FDA), temperature range -40
 110°C) & pressure gauges on inlet and outlet side

Lead-free in the contact area with drinking water
